aiosock Class Reference

expands windows IO Completion Port idea to Linux More...

#include <aiosock.h>

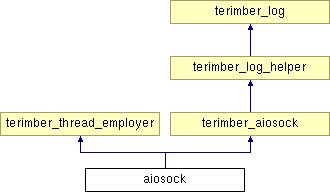

Inheritance diagram for aiosock:

List of all members.

Public Member Functions

aiosock (size_t capacity, size_t deactivate_time_msec)

constructor

~aiosock ()

destructor

bool on ()

activates

void off ()

deactivates

virtual size_t create (terimber_aiosock_callback *callback, bool tcp_udp)

creates socket

virtual void close (size_t ident)

closes socket

virtual int send (size_t ident, const void *buf, size_t len, size_t timeout, const sockaddr_in *toaddr, void *userdata)

sends buffer to specified socket asynchronously

virtual int receive (size_t ident, void *buf, size_t len, size_t timeout, const sockaddr_in *fromaddr, void *userdata)

receives buffer of bytes from specified socket asynchronously

virtual int connect (size_t ident, const char *address, unsigned short port, size_t timeout, void *userdata)

connects to the specified socket synchronously

virtual int listen (size_t ident, unsigned short port, size_t max_connection, const char *address, unsigned short accept_pool, void *userdata)

turns the specified socket to ***othe*** listening state and will accept automatically the incoming connections asynchronously

virtual int bind (size_t ident, const char *address, unsigned short port)

binds UDP socket to address

virtual int getpeeraddr (size_t ident, sockaddr_in &addr)

gets the peer address

virtual int getsockaddr (size_t ident, sockaddr_in &addr)

gets the sock address

virtual bool get_error_description (int err, char *buf, size_t len) const

gets error string by code

virtual void doxray ()

makes the snapshot of internal state

Static Public Member Functions

static bool resolve_sock_error_code (int err, char *buf, size_t len)

Public Attributes

mutex _mtx

multithreaded access to socket map

aiosock_socket_map_t _socket_map

socket map

aiosock_reverse_map_t _reverse_map

reverse socket map

aiosock_listener_map_t _listeners_map

listeners map

aiosock_delay_key_t _delay_key_map

map of the keys which can not be returned back to generator right now

unique_key_generator _socket_generator

generates socket idents

aiosock_pblock_allocator_t _incoming_list_allocator

external allocator for list of pointers to blocks

aiosock_block_allocator_t _block_allocator

block allocator

aiosock_pblock_list_t _initial_list

keeps initial processing reuqests

aiosock_pblock_list_t _outgoing_list

keeps processed asynchronous requests

aiosock_pblock_list_t _abounded_list

keeps abounded asynchronous requests for Complition Port only

Protected Member Functions

virtual bool v_has_job (size_t ident, void *data)

detects if there is any job to do

virtual void v_do_job (size_t ident, void *data)

executes actual job in separate thread

Private Types

typedef node_allocator
< base_list< aiosock_block * >
::_node > aiosock_pblock_allocator_t

node allocator for list of blocks

typedef _list< aiosock_block
*, aiosock_pblock_allocator_t > aiosock_pblock_alloc_list_t

list of block pointers with external allocator

typedef list< aiosock_block * > aiosock_pblock_list_t

list of block pointers with internal allocator

typedef node_allocator
< aiosock_block > aiosock_block_allocator_t

node allocator - block factory

typedef map< size_t,
listener_info > aiosock_listener_map_t

maps listener ident to listener information

typedef map< size_t,
aiosock_socket > aiosock_socket_map_t

maps socket ident yo socket info

typedef map< size_t,
aiosock_socket >::iterator aiosock_socket_map_iterator_t

aiosock_socket_map iterator

typedef map< aio_sock_handle,
aiosock_socket_map_iterator_t > aiosock_reverse_map_t

reverses map socket handle to socket map interator

typedef map< aio_sock_handle,
aiosock_socket_map_iterator_t >
::iterator aiosock_reverse_map_iterator_t

aiosock_reverse_map iterator

typedef map< size_t, size_t > aiosock_delay_key_t

maps socket ident to delay counter

Private Member Functions

void _clear_block_lists ()

clears all block lists outgoing, abounded, initial

aiosock_block * _get_block ()

gets new blocks

void _put_block (aiosock_block *block)

returns used block back

bool resolve_socket_address (const char *address, unsigned short port, sockaddr_in &addr)

resolves address into IP

aio_sock_handle find_socket_handle (size_t ident)

thread-safe function to find socket handle by socket ident

void process_timeouted_blocks ()

processes timeouted blocks

bool process_accept_blocks ()

initiates new accepts

void complete_block (size_t sock_key, aiosock_block *ov, int err, size_t processed)

completes asynchronous action

int _activate_block (size_t ident, aiosock_block *block, const sockaddr_in *pddr)

inserts block into incoming queue for processing in a separate thread

void _cancel_socket (aio_sock_handle handle)

cancels asynchronous operations

size_t _assign_socket (aio_sock_handle handle, terimber_aiosock_callback *callback, bool tcp_udp)

associates socket handle with internal structures

void _close_socket (aio_sock_handle handle, bool tcp_udp)

closes socket

int _process_block (aiosock_block *block)

starts actual IO processing

int _process_connect (aio_sock_handle handle, aiosock_block *block)

processing connect

int _process_accept (aio_sock_handle handle, terimber_aiosock_callback *client, aiosock_block *block)

processing accept

int _process_send (aio_sock_handle handle, aiosock_block *block, bool tcp_udp)

processing send

int _process_recv (aio_sock_handle handle, aiosock_block *block, bool tcp_udp)

processing receive

void wait_for_io_completion ()

waits for completion actions in separate thread Terimber Completion Port

Private Attributes

HANDLE _aiosock_io_handle

this Terimber port handle

threadpool _thread_pool

thread pool

size_t _capacity

max thread pool capacity

thread _in_thread

housekeeping thread - process initatial and timeouted blocks

bool _on

activation flag

bool _flag_io_port

signals that the Terimber Completion Port is running

event _start_io_port

signals that the thread is waiting for completion actions - Terimber Completion Port

event _stop_io_port

signals that the thread stopped for completion actions - Terimber Completion Port

Static Private Attributes

static bool _port_init

initialize once

Classes

class aiosock_socket

keeps socket information including initiated asynchronous actions blocks More...

class listener_info

listener information More...

Detailed Description

expands windows IO Completion Port idea to Linux

Definition at line 91 of file aiosock.h.

Member Typedef Documentation

aiosock::aiosock_pblock_allocator_t [private]

node allocator for list of blocks

Definition at line 96 of file aiosock.h.

aiosock::aiosock_pblock_alloc_list_t [private]

list of block pointers with external allocator

Definition at line 99 of file aiosock.h.

aiosock::aiosock_pblock_list_t [private]

list of block pointers with internal allocator

Definition at line 102 of file aiosock.h.

aiosock::aiosock_block_allocator_t [private]

node allocator - block factory

Definition at line 105 of file aiosock.h.

aiosock::aiosock_listener_map_t [private]

maps listener ident to listener information

Definition at line 129 of file aiosock.h.

aiosock::aiosock_socket_map_t [private]

maps socket ident yo socket info

Definition at line 163 of file aiosock.h.

aiosock::aiosock_socket_map_iterator_t [private]

aiosock_socket_map iterator

Definition at line 166 of file aiosock.h.

aiosock::aiosock_reverse_map_t [private]

reverses map socket handle to socket map interator

Definition at line 169 of file aiosock.h.

aiosock::aiosock_reverse_map_iterator_t [private]

aiosock_reverse_map iterator

Definition at line 172 of file aiosock.h.

aiosock::aiosock_delay_key_t [private]

maps socket ident to delay counter

Definition at line 175 of file aiosock.h.

Constructor & Destructor Documentation

aiosock::aiosock	(	size_t	capacity,
		size_t	deactivate_time_msec
	)

constructor

Parameters:

capacity	additional threads for processing asynchronous completion callbacks
deactivate_time_msec	timeout in milliseconds to despose unused threads

Definition at line 301 of file aiosock.cpp.

aiosock::~aiosock ( )

destructor

Definition at line 314 of file aiosock.cpp.

References off().

Member Function Documentation

void aiosock::_clear_block_lists ( ) [inline, private]

clears all block lists outgoing, abounded, initial

Definition at line 179 of file aiosock.h.

References _abounded_list, _initial_list, _outgoing_list, _put_block(), base_list< T >::begin(), list< T >::clear(), base_list< T >::empty(), and base_list< T >::end().

Referenced by off().

aiosock_block* aiosock::_get_block ( ) [inline, private]

gets new blocks

Definition at line 221 of file aiosock.h.

References _block_allocator, and node_allocator< T >::allocate().

Referenced by connect(), process_accept_blocks(), receive(), and send().

void aiosock::_put_block ( aiosock_block * block ) [inline, private]

returns used block back

Definition at line 235 of file aiosock.h.

References _block_allocator, and rep_allocator::deallocate().

Referenced by _activate_block(), _clear_block_lists(), close(), complete_block(), process_timeouted_blocks(), and v_do_job().

bool aiosock::on ( )

activates

Definition at line 321 of file aiosock.cpp.

References _aiosock_io_handle, _flag_io_port, _in_thread, _on, _sockStartup(), _start_io_port, _thread_pool, aiosock_completion_io_port_ident, aiosock_completion_io_port_thread_alert, aiosock_io_initiation_ident, aiosock_io_initiation_thread_alert, aiosock_working_ident, aiosock_working_thread_alert, thread::assign_job(), threadpool::borrow_thread(), en_log_error, en_log_info, terimber_log::format_logging(), terimber_log_helper::log_on(), threadpool::on(), thread::start(), and event::wait().

Referenced by aiogate::on(), and msg_communicator::v_on().

void aiosock::off ( )

size_t aiosock::create	(	terimber_aiosock_callback *	callback,
		bool	tcp_udp
	)			`[virtual]`

creates socket

Parameters:

callback	callback function
tcp_udp	socket type TCP/UDP

Implements terimber_aiosock.

Definition at line 912 of file aiosock.cpp.

References _aiosock_io_handle, _assign_socket(), _mtx, en_log_error, and terimber_log::format_logging().

Referenced by aiogate::bind(), aiogate::connect(), aiogate::listen(), msg_sock_connection::msg_sock_connection(), and msg_sock_listener::v_on().

void aiosock::close ( size_t ident ) [virtual]

closes socket

Parameters:

ident

socket ident

Implements terimber_aiosock.

Definition at line 940 of file aiosock.cpp.

References _abounded_list, _aiosock_io_handle, _cancel_socket(), _close_socket(), _delay_key_map, _incoming_list_allocator, _initial_list, _listeners_map, _mtx, _outgoing_list, _put_block(), _reverse_map, _socket_generator, aiosock_block::_socket_ident, _socket_map, base_list< T >::begin(), en_log_error, en_log_info, base_list< T >::end(), base_map< K, T, Pr, M >::end(), list< T >::erase(), map< K, T, Pr, M >::erase(), base_map< K, T, Pr, M >::find(), terimber_log::format_logging(), map< K, T, Pr, M >::insert(), base_map< size_t, size_t, less< size_t >, false >::iterator, mutex_keeper::lock(), list< T >::push_back(), unique_key_generator::save(), and mutex_keeper::unlock().

Referenced by _close_socket(), _process_accept(), msg_sock_connection::accept(), aiogate::bind(), aiogate::connect(), aiogate::deaf(), aiogate::final_close(), aiogate::listen(), v_do_job(), msg_sock_listener::v_off(), aiogate::v_on_accept(), msg_sock_connection::~msg_sock_connection(), and msg_sock_listener::~msg_sock_listener().

int aiosock::send	(	size_t	ident,
		const void *	buf,
		size_t	len,
		size_t	timeout,
		const sockaddr_in *	toaddr,
		void *	userdata
	)			`[virtual]`

sends buffer to specified socket asynchronously

Parameters:

ident	socket ident
buf	buffer to send
len	buffer length
timeout	timeout in milliseconds
toaddr	peer address, optional for TCP sockets
userdata	user defined data

Implements terimber_aiosock.

Definition at line 1074 of file aiosock.cpp.

References _activate_block(), aiosock_block::_buf, _get_block(), aiosock_block::_len, _mtx, aiosock_block::_type, aiosock_block::_userdata, AIOSOCK_SEND, and aiosock_block::settimeout().

Referenced by aiogate::send_bulk(), msg_sock_connection::v_do_job(), msg_sock_connection::v_on_send(), and aiogate::v_on_send().

int aiosock::receive	(	size_t	ident,
		void *	buf,
		size_t	len,
		size_t	timeout,
		const sockaddr_in *	fromaddr,
		void *	userdata
	)			`[virtual]`

receives buffer of bytes from specified socket asynchronously

Parameters:

ident	socket ident
buf	buffer to receive
len	buffer length
timeout	timeout in milliseconds
fromaddr	peer address, optional for TCP sockets
userdata	user defined data

Implements terimber_aiosock.

Definition at line 1098 of file aiosock.cpp.

References _activate_block(), aiosock_block::_buf, _get_block(), aiosock_block::_len, _mtx, aiosock_block::_type, aiosock_block::_userdata, AIOSOCK_RECV, and aiosock_block::settimeout().

Referenced by msg_sock_connection::accept(), aiogate::recv(), msg_sock_connection::v_on_connect(), and msg_sock_connection::v_on_receive().

int aiosock::connect	(	size_t	ident,
		const char *	address,
		unsigned short	port,
		size_t	timeout,
		void *	userdata
	)			`[virtual]`

connects to the specified socket synchronously

Parameters:

ident	socket ident
address	peer address: IP, DNS name, localhost
port	peer port
timeout	timeout in milliseconds
userdata	user defined data

Implements terimber_aiosock.

Definition at line 1121 of file aiosock.cpp.

References _activate_block(), aiosock_block::_address, _get_block(), _mtx, aiosock_block::_type, aiosock_block::_userdata, AIOSOCK_CONNECT, en_log_error, terimber_log::format_logging(), resolve_socket_address(), and aiosock_block::settimeout().

Referenced by msg_sock_connection::connect(), and aiogate::connect().

int aiosock::listen	(	size_t	ident,
		unsigned short	port,
		size_t	max_connection,
		const char *	address,
		unsigned short	accept_pool,
		void *	userdata
	)			`[virtual]`

turns the specified socket to ***othe*** listening state and will accept automatically the incoming connections asynchronously

Parameters:

ident	socket ident
port	listener port
max_connection	max waiting connections to accept
address	listener address: IP, DNS name, localhost
accept_pool	max initiated acceptors
userdata	user defined data
